Split Roller Bearings

                                                                                   Split Roller Bearings



Split roller bearings refer to bearings with split inner rings, outer rings, or both, which are mainly used in scenarios where easy installation, disassembly, and maintenance are required.

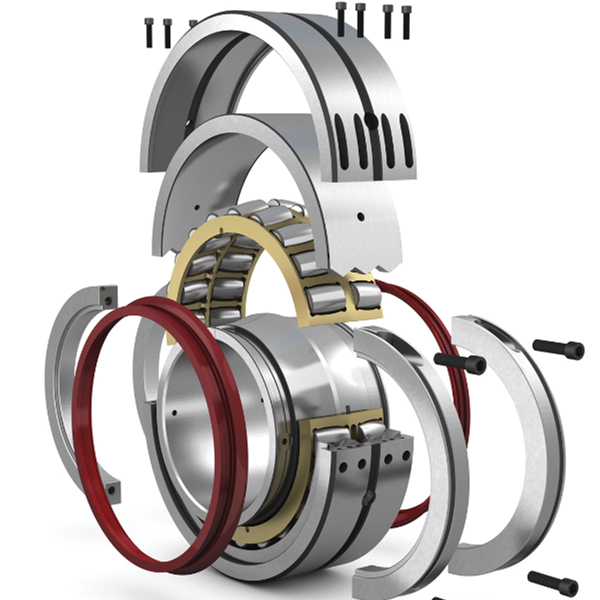

Split Spherical Roller Bearings: As shown in the figure below, it has two symmetrical rows of rollers, a common spherical outer raceway, and two inner raceways angled to the bearing axis. This structure enables it to bear heavy radial loads and combined or unidirectional axial loads, and it also has self-aligning properties.

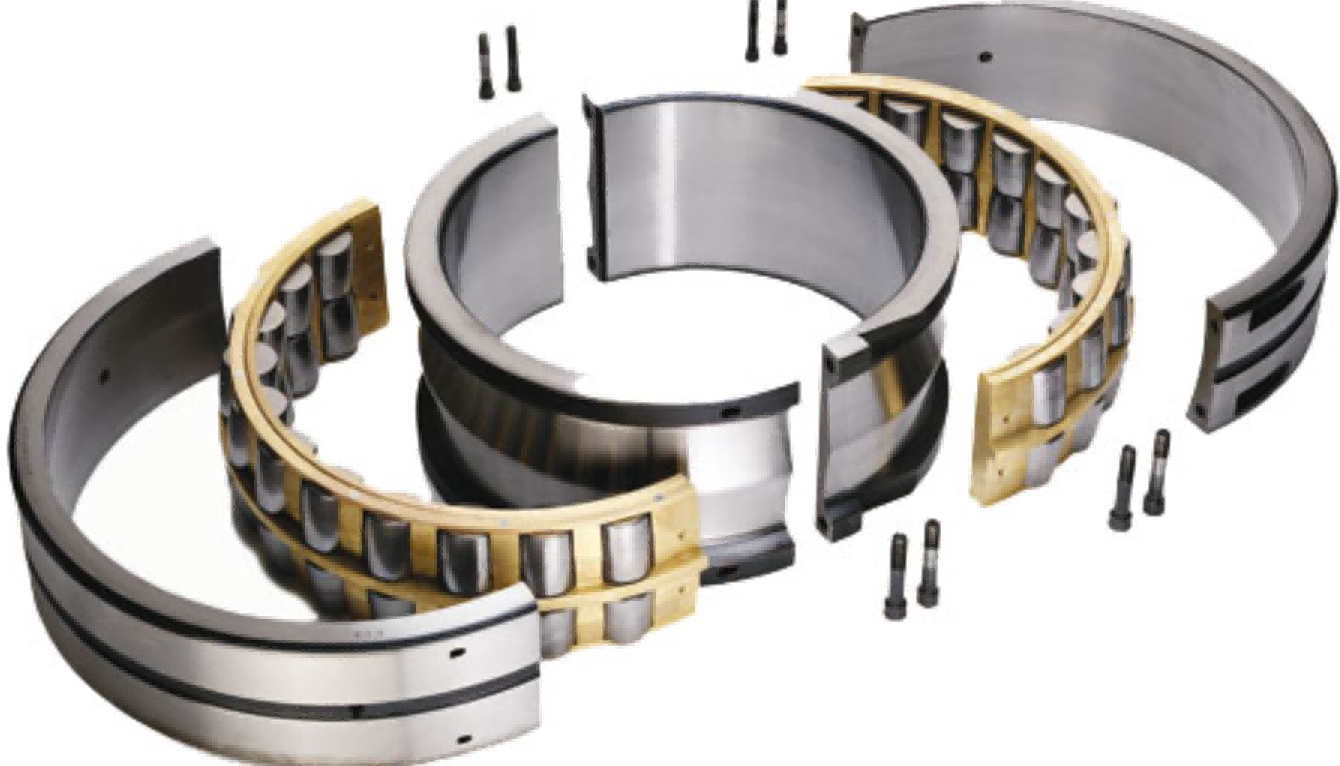

Split Cylindrical Roller Bearings: The inner ring, outer ring, and roller assembly of the bearing are completely split. As shown in the figure below, this type of bearing can bear radial loads and some axial loads and is suitable for a variety of load and speed conditions.



Applications

Mining Industry: It is widely used in mining machinery such as crushers, mills, and conveyors, which can meet the requirements of heavy load and harsh working environment in the mining industry.

Cement Industry: In cement production equipment, such as rotary kilns, fans, and continuous casters, split roller bearings play an important role in ensuring the stable operation of equipment.

Power Generation Industry: It is used in power generation equipment such as wind turbines, steam turbines, and generators to support the high-speed rotation of shafts and bear various loads.





we are professional bearing manufacturer with all types of bearings available .

●Large stock ● High quality  ● competitive  price  ● quick delivery



Stock available for hot selling Split Roller Bearings ▼

Part No.	Mass(kg)	Dimensions (mm)
		d	D	C	B	r (min.)
230SM150-MA	17.4	150	260	67	112	2,1
231SM150-MA	28	150	280	88	133	2,1
222SM150-TVPA	35.5	150	310	86	128	4
230SM160-MA	24.4	160	280	74	123	2,1
231SM160-MA	32.7	160	300	96	140	2,1
222SM160-TVPA	37.6	160	320	86	131	4
230SM170-MA	23.6	170	290	75	120	2,1
231SM170-MA	40.6	170	320	104	142	2,1
222SM170-TVPA	43.6	170	340	92	142	4
230SM180-MA	30	180	310	82	134	2,1
231SM180-MA	56.4	180	340	112	160	3
222SM180-MA	52.7	180	360	98	154	4
230SM200-MA	45	200	340	90	136	3
231SM200-MA	61.8	200	370	120	175	4
222SM200-MA	69.6	200	400	108	162	4
230SM220-MA	42.6	220	360	92	156	3
231SM220-MA	86	220	400	128	190	4
222SM220-MA	90.9	220	440	120	170	4
230SM240-MA	57.4	240	400	104	160	4
231SM240-MA	118	240	440	144	210	4
222SM240-MA	136	240	480	130	200	5
230SM260-MA	63.6	260	420	106	170	4
231SM260-MA	109	260	460	146	190	5
222SM260-MA	147	260	500	130	200	5
230SM280-MA	96	280	460	118	176	4
231SM280-MA	160	280	500	160	218	5
222SM280-MA	157	280	540	140	200	5
230SM300-MA	108	300	480	121	186	4
231SM300-MA	184	300	540	176	225	5
222SM300-MA	214	300	580	150	212	5
